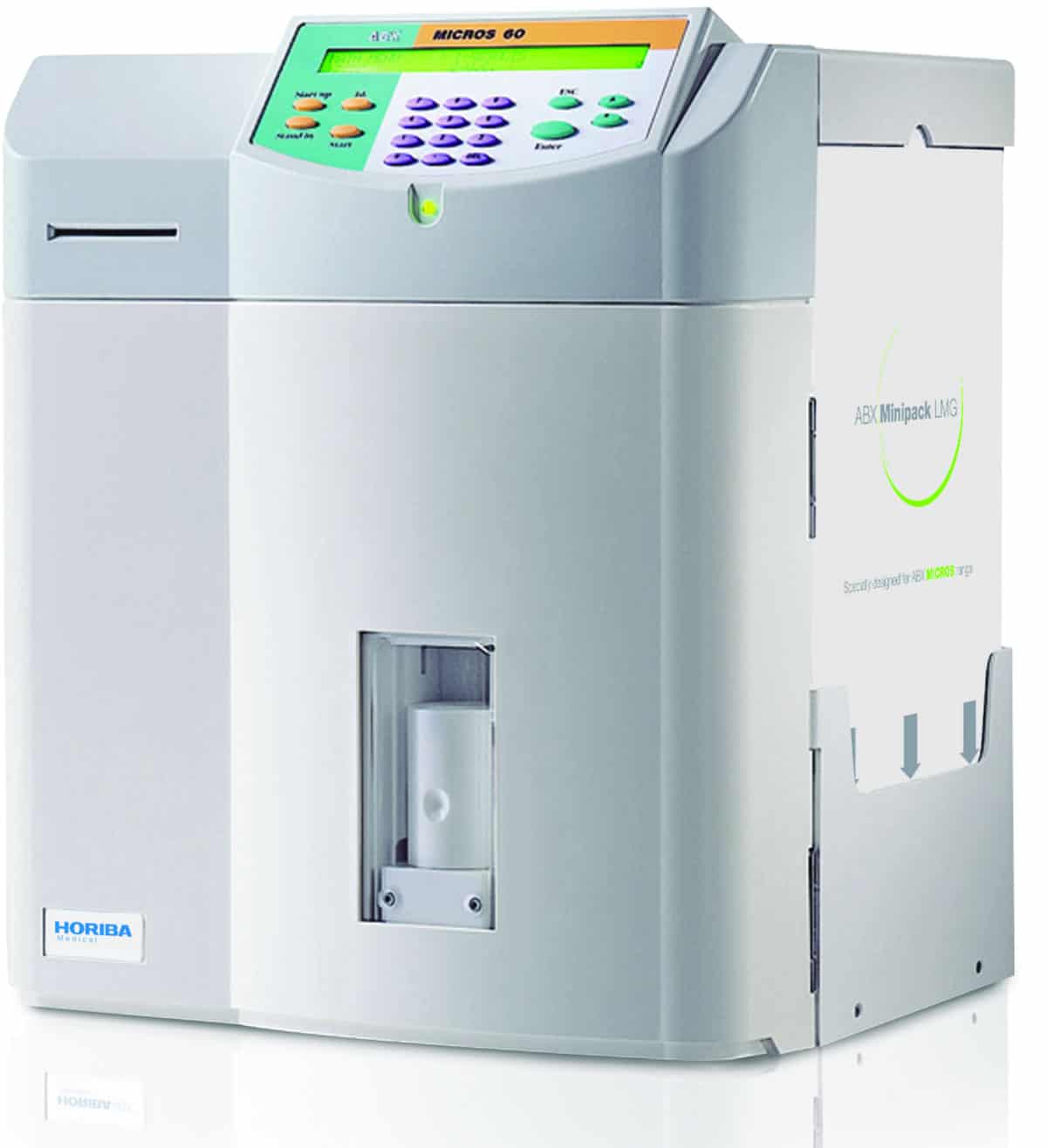

ABX Micros 60
Hematology Analyzer
Process efficiency in Hematology
- Impedance technology, photometry
- Microsampling: Only 10 µL
- Smart card based memory storage (optional)
- No compressor (stepper motor technology)
*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.
Segment: Healthcare
Division: Hematology
Manufacturing Company: HORIBA ABX SAS
Base product: Micros Range
- Measurement methods: Impedance technology, photometry.
- Liquid valves (without pinching): Reliability and increased precision
- No compressor (stepper motor): Reliability, less maintenance and noise
- 8 or 18 fully automated parameters
- CBC / 3 Part DIFF
- Open or Closed Tube
SPECIFICATIONS
Technical
| Weight | 31 lbs |
| Power supply | 90/240 V – 50/60 Hz – 230 VA. |
| Dimensions | 16.5 in x 14 x 12.5 in (HxWxD). |
| Printer | Dot matrix. |
| Throughout | 60 samples/hour (on open tube) 55 samples/hour (closed tube) |
| Data management | Automated smart cards used for QC and patient data storage (optional). RS 232 output. Mono-directional connection. |
| Memory | Last result (with curves) or 78 results (optional smart cards based memory) |
| Screen | 2 lines of 40 alphanumerical characters. |
| Keyboard | Barcode reader (optional). |
Samples
| 60 samples/hour (open tube) | |
|---|---|
| Parameters (16+2) | CBC Mode (18 parameters): WBC, RBC, HGB, HCT, MCV,*RDW, MCH, MCHC, PLT, MPV, PCT, *PDW, % and # of LYM, MON and GRA |
| Graphics | LMG histogram, RBC, PLT histograms |
| Sample-Volume | CBC mode: 10 µL |
| Stability | 24 hours (CBC) |
| Operating sample mode | Open tube mode with 4 position tube holder (QC, 125 or 500 µL, 3 or 5 mL) |
| Identification | Patient I.D., Sequence# |
| Flags | Pathological flags (WBC, RBC, and PLT) normal limits and counting failure flags |
* RUO (Research Use Only)
Results
| Parameters | Precision (cv %) | Linearity |
|---|---|---|
| WBC | < 2,5% | 0-100 x 10³/mm3 |
| RBC | < 2% | 0-8 x 106/mm3 |
| HGB | < 1.5% | 0-26 g/dl |
| HCT | < 2% | 0-80% |
| PLT (whole blood) | < 5% | 0-2200 x 10³/mm3 |
| PLT (PLT concentrate) | < 5% | 0-4000 x 10³/mm3 |
Blood Controls
| Reference | Description | |
|---|---|---|
| 2042208 | ABX Minotrol 16 – 2L | 2 x 2.5 mL vial |
| 2042209 | ABX Minotrol 16 – 2N | 2 x 2.5 mL vial |
| 2042202 | ABX Minotrol 16 – 2H | 2 x 2.5 mL vial |
Calibrators
| Test Reference | Description | |
|---|---|---|
| 2032002 | ABX Minocal | 2 mL vial |
N: normal level, H: high level, L: low level
* Recommended by HORIBA
