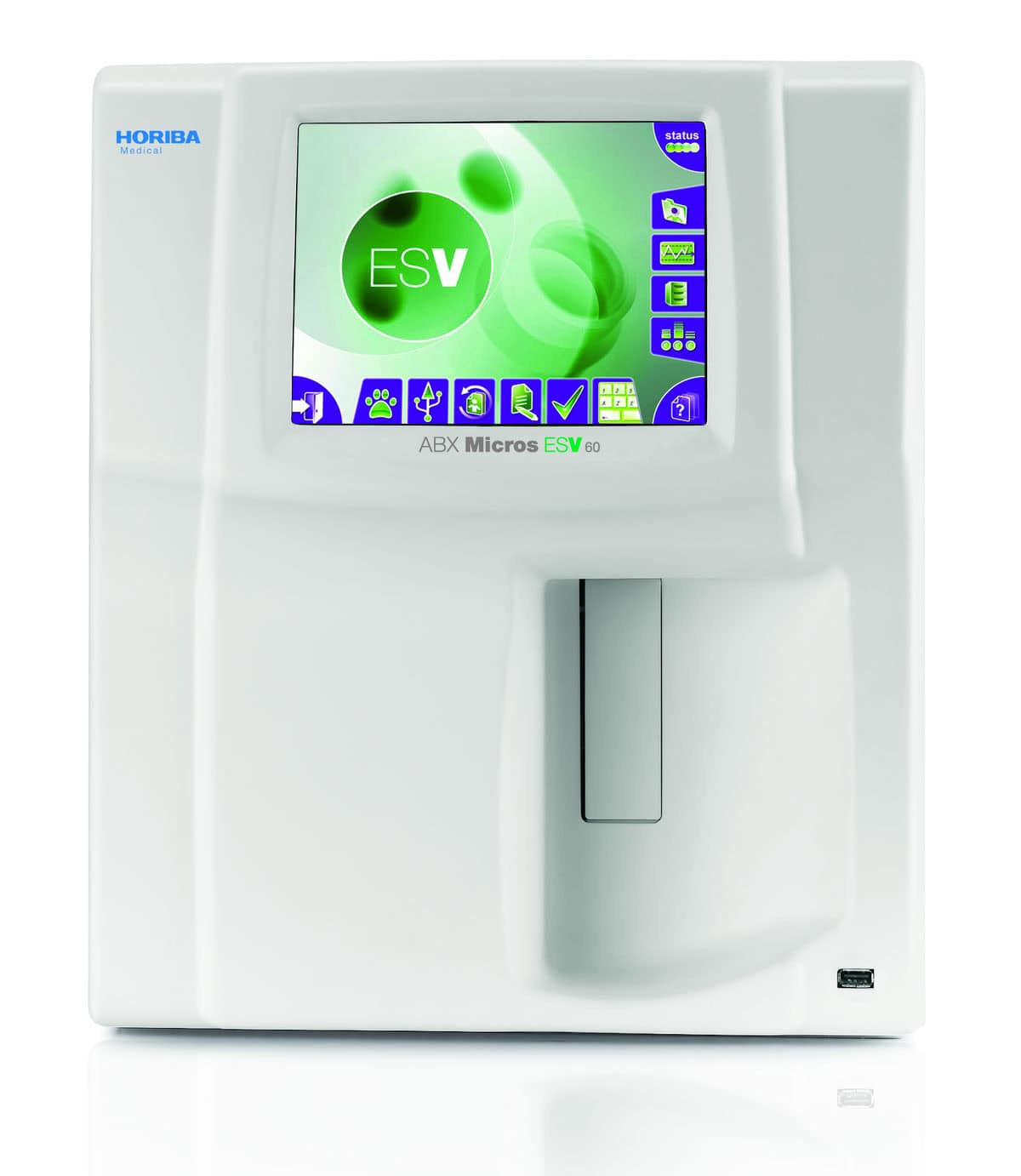

ABX Micros ESV 60

Hematology Analyzer

The Gold Standard of Veterinary Hematology Testing

Open Tube
10 animal species
8 or 18 parameters
50 tests/hour
Highly compact and lightweight
Micro-sampling on whole blood: 10μL
Precise cellular identification through electronic impedance variation method
Hemoglobin measurement with photometry

*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.

Segment: Healthcare

Division: Hematology

Manufacturing Company: HORIBA ABX SAS

Base product: Micros Range

Categories: Hematology, Horiba, Lab Analyzers, Uncategorized

FEATURES
SPECIFICATIONS

External barcode reader (identification of patient samples, QC and reagents)
User-friendly interface (colour touch screen, virtual keyboard)
Data transfer with USB key (archiving to PC, upload of QC target values)
Unique reagent pack system
10 animal species: dog, cat, horse, rat, mouse, rabbit, pig, monkey, cow and sheep

SPECIFICATIONS

Technical

Weight	30.9 lb / 16 kg
Power supply	100 V to 240 V – 50 Hz to 60 Hz
Dimensions	16.9 in x 14.2 in x 14.2 / 43 cm x 36 cm x 36 cm (HxLxP)
Printer	External
Throughput	50 tests/hour
Data Management	Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy operation Transmission of patient & QC results to LAN (local area network) Mono-directional connection
Memory	1000 patients results with histograms
Screen	LCD colour touch screen

scrollable

Samples

50 tests/hour (Open Tube)
Parameters (8)	For rabbit, rat, mouse, pig, monkey, cow and sheep: WBC RBC PLT HGB HCT MCV MCH MCHC
Parameters (18)	For dog, cat and horse: WBC, LYM# & LYM%, MON# & MON%, GRA# & GRA%, EOS# & EOS%, RBC, PLT, HGB, MPV, HCT, MCV, MCH, MCHC, RDW
Graphics	PLT, RBC, WBC curves
Blood volume	CBC + 4DIFF mode: 10 μL
Stability	48 hours post-draw stability
Operating sample mode	Open tube
Identification	Alphanumeric, External barcode reader

scrollable

Results

	Parameters	Presicion (cv %)	Linearity
Cat	WBC	< 3 (at 5.5-19.5 x 10³/μL)	0 – 100 x 10³/μL
	RBC	< 3.5 (at 5-10 x 10⁶/μL)	0 – 12 x 10⁶/µL
	HGB	< 3.5 (at 8-15 g/dL)	0 – 900 x g/dL
	HCT	< 3.5 (at 24-45 %)	0 – 25%
	PLT (whole blood)	< 8.0 (at 300-800 x10³/μL)	0 – 70 x 10³/µL
Dog	WBC	< 4 (at 6-17 x 10³/μL)	0 – 100 x 10³/μL
	RBC	< 2.5 (at 5.5-8.5 x 10⁶/μL)	0 – 10 x 10⁶/µL
	HGB	< 2.5 (at 12-18 g/dL)	0 – 900 x g/dL
	HCT	< 2.5 (at 37-55 %)	0 – 25%
	PLT	< 10.0 (at 200-500 x10³/μL)	0 – 70 x 10³/µL
Horse	WBC	< 3 (at 5.4 – 14.3 x 10³/μL)	0 – 100 x 10³/μL
	RBC	< 2.5 (at 6.8-12.9 x 10⁶/μL)	0 – 12 x 10⁶/µL
	HGB	< 2.5 (at 11-19 g/dL)	0 – 900 x g/dL
	HCT	< 2.5 (at 32-53 %)	0 – 25%
	PLT	< 10.0 (at 100-350 x10³/μL)	0 – 70 x 10³/µL
