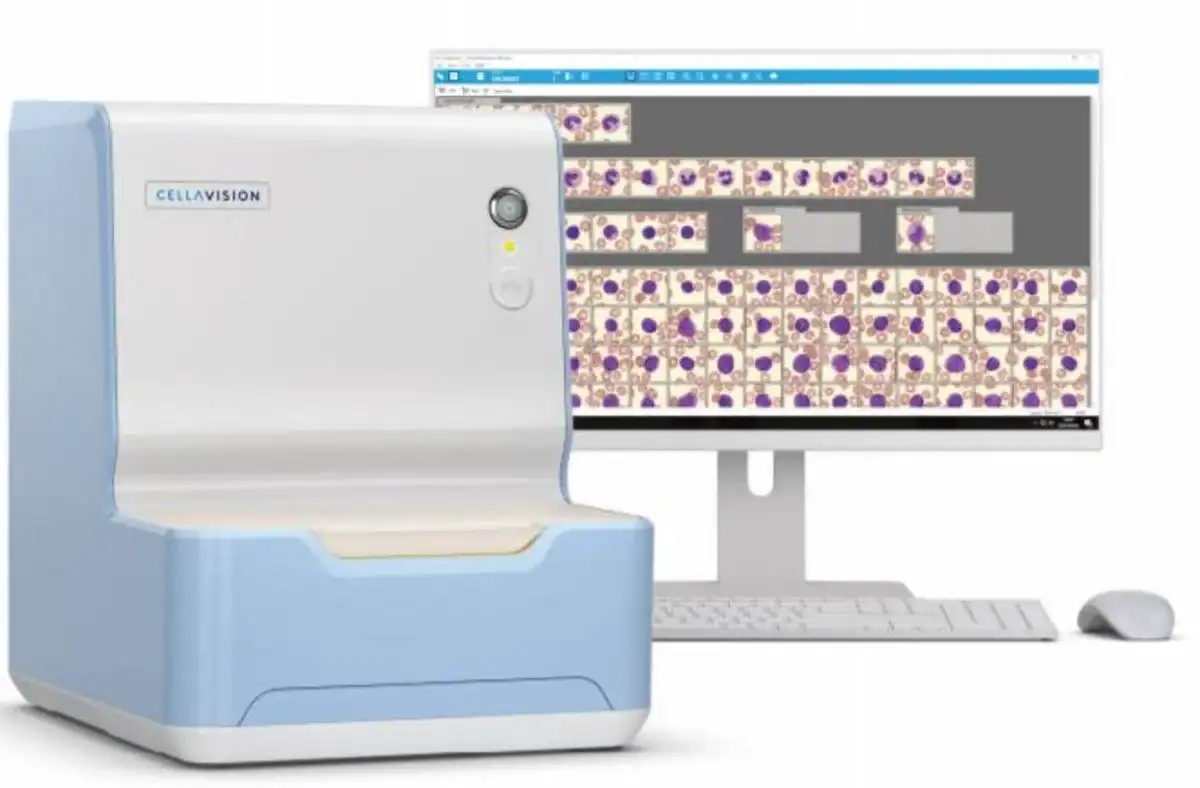

CellaVision® DC-1
Digital Cell Morphology System
The CellaVision® DC-1 is designed to automate and simplify the process of performing blood cell differentials in low-volume laboratories. The system leverages high-speed robotics and digital imaging to automatically locate and capture high quality images of cells. It allows both stand-alone and networked installation.
In a stand alone low-volume hematology laboratory the CellaVision® DC-1 innovates the process of performing cell differentials.
When used in a small satellite site in a health network the CellaVision® DC-1 allows the process and review of blood smears locally and remotely as well as improving collaboration with colleagues and morphology experts at other sites.
*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.
Segment: Healthcare
Division: Hematology
Manufacturing Company: CellaVision AB (publ)
Base product: CellaVision®
- Automatically captures digital images of cells from blood smears
- Loading Capacity of 1 slides
- Approximately 10 slides throughput / h*
- Creates digital scan of pre-defined area of any interesting specimen
*Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
SPECIFICATIONS
| SLIDE HANDLING | |
| • Accepts slides with ground edges, clipped, round or square corners • Order ID for slides entered either manually or using an optional barcode reader • Slides are loaded one slide at a time • Analyzes slides with blood smears |
|
| IMMERSION OIL | |
| Manual oil dispensing | |
| QUALITY CONTROL | |
|
|
| ARCHIVING OF RESULTS AND IMAGES | |
| Utilizing LAN | |
| STORAGE CAPACITY | |
| • Primary storage: On local hard drive up to 1,500 slides (20 GB) • Secondary storage: Unlimited when transferred to external storage media |
|
| PRINTER SUPPORT | |
| Laser/inkjet printers supported by Windows | |
| COMMUNICATIONS | |
| • Bi-directional LIS support, ASTM • Ethernet 10/100 Mbps • Multiple CellaVision® DM/DC analyzers can share a database |
|
| SYSTEM COMPONENTS | |
| • Slide Scanning Unit with integrated PC and Windows 10 embedded • CellaVision® DM Software |
|
| ELECTRONICAL SPECIFICATIONS | |
| Analyzer • Voltage input 12 VDC • Current input 7 ADC Power supply • Voltage input, power supply 100 to 240 V • Voltage frequency, power supply 50 to 60 Hz • Current input 1.2 to 0.6 A |
|
| SIZE (Width x Depth x Height) | |
| • 280 x 390 x 370 mm • 11,0 x 15,4 x 14,6 inches |
|
| WEIGHT | |
| 11 kg / 24 lbs | |
| THROUGHPUT* | |
| NOTE: Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs. Up to 10 slides/h for complete differential (100 WBC+RBC+PLT) |
|
| SLIDE PREPARATION METHODS (WEDGED) | |
| • Automated slide makers and stainers • CellaVision® SmearMaker • HemaPrep®/MiniPrep® automated blood smearing device • Manual smears |
|
| STAINS | |
| • Romanowsky stains (May Grünwald Giemsa, Wright Giemsa, Wright) | |
| OPTIONAL SOFTWARE / APPLICATIONS | |
| • CellaVision® Remote Review Software • CellaVision® Server Software • CellaVision® Profiency Software • CellaVision® Dashboard |
* Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
** Not available in all markets. Please contact your local HORIBA Medical-vendor for more information about availability.
