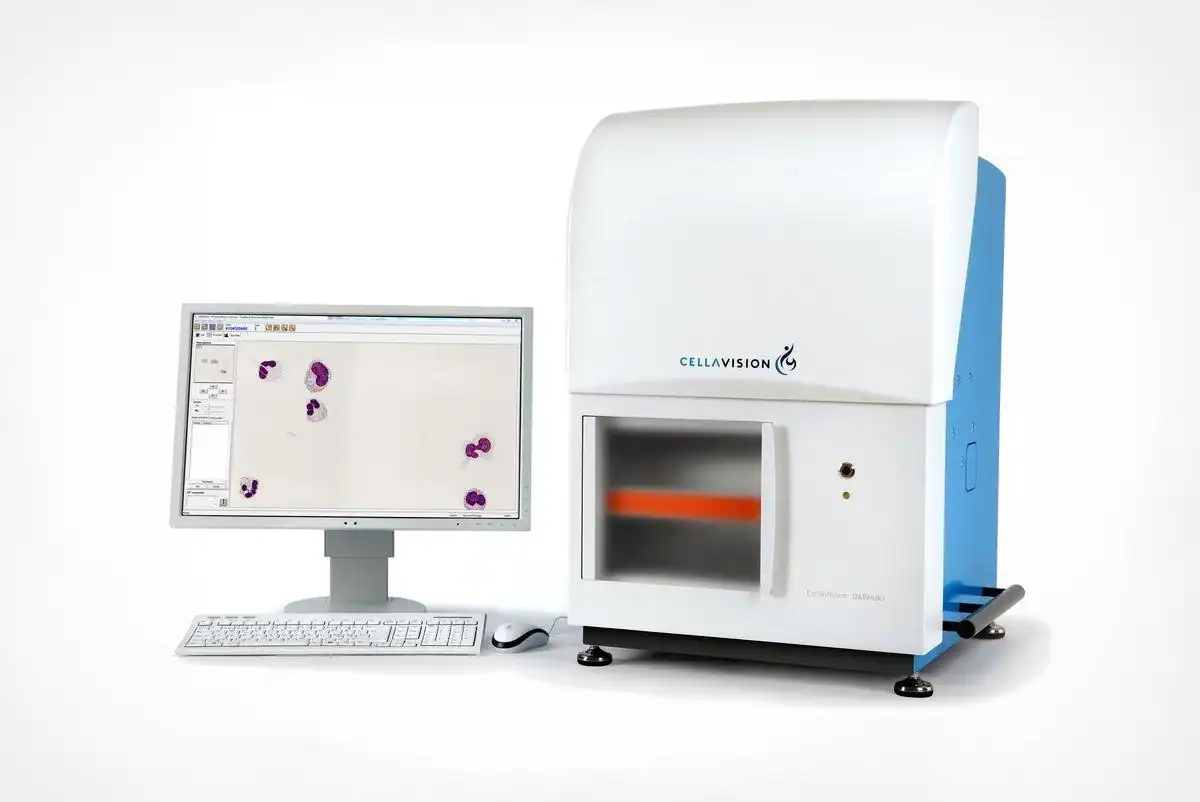

CellaVision® DM9600
Digital Cell Morphology System
The CellaVision® DM9600 is designed to automate and simplify the process of performing blood and body fluid differentials. The system leverages high-speed robotics and digital imaging to automatically locate and capture high-quality images of cells. When implemented together with CellaVision® applications and supporting software, the CellaVision® DM9600 becomes the engine of a streamlined and automated digital cell morphology workflow, enabling laboratories to work smarter and perform better.
Developed to meet the needs of big labs with high-volume testin g requirements:
• Loading capacity: 96 slides, with continuous feed
• Throughput: Approximately 30 slides / h*
*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.
Segment: Healthcare
Division: Hematology
Manufacturing Company: CellaVision AB (publ)
Base product: CellaVision®
- Automatically captures digital images of cells from blood smears and body fluid preparations
- Loading capacity of 96 slides, with mechanism for continuous feed
- Approximately 30 slides throughput per hour*
- Creates digital scan of pre-defined area of any interesting specimen
* Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
Specifications are subject to change without notice. This product may not be available in all markets.
SPECIFICATIONS
| SLIDE HANDLING | |
| • Requires barcode labeled slides with clipped/round corners • Slides are loaded into magazines with the capacity of 12 slides. Fits eight magazines. • Analyzes slides with blood smears and body fluids either batched in dedicated magazines or mixed when interfaced to a LIS |
|
| IMMERSION OIL | |
| Automatic dispensing | |
| QUALITY CONTROL | |
| Cell location accuracy test for the verification of the hardware and stain quality | |
| ARCHIVING OF RESULTS AND IMAGES | |
| LAN | |
| STORAGE CAPACITY | |
| • Primary storage: On local hard drive up to 4,000 slides (20 GB) • Secondary storage: Unlimited when transferred to external storage media |
|
| PRINTER SUPPORT | |
| Laser/inkjet printers supported by Windows | |
| COMMUNICATIONS | |
| • Bi-directional LIS support, ASTM • Ethernet 10/100 Mbps • Multiple CellaVision DM analyzers can share a database |
|
| SYSTEM COMPONENTS | |
| • Slide Scanning Unit • CellaVision DM Software • System Computer with Windows |
|
| ELECTRONICAL SPECIFICATIONS | |
| • Voltage input: 100 to 240 VAC Current input: • System computer: 1.4 to 0.7 A • Slide scanning unit: 0.6 to 0.3 A |
|
| CLEARANCE | |
| CE, 510(k) | |
| SIZE (Width x Depth x Height) | |
| • 580 × 560 × 790 mm • 22.8 × 22 × 31,1 inches |
|
| WEIGHT | |
| 93 kg / 205 lbs | |
| THROUGHPUT* | |
| Peripheral Blood: • Up to 30 slides/h for complete differential (100 WBC+RBC+PLT) Digital Slides: • Up to 20 slides/h for 10 × 10 mm in 10x • Up to 1,5 slides/h for 10 × 10 mm in 10x + 50x Body Fluids (based on 6 mm sample area): • Up to 15 slides/h for differential (100 WBCs + 10x) • Up to 3 slides/h for differential (100 WBCs + 10x + 50x) |
|
| OPTIONAL SOFTWARE / APPLICATIONS | |
| • CellaVision® Advanced RBC Application • CellaVision® Body Fluid Application • CellaVision® Remote Review Software • CellaVision® Server Software • CellaVision® Proficiency Software |
|
| ACCESSORIES | |
| • CellaVision Immersion Oil Pack • Barcode labeled slide magazines • QC barcode labels • Light tower • Label printer kit |
* Processing time may vary depending on smear quality, WBC concentration and number of non-WBCs.
Specifications are subject to change without notice. This product may not be available in all markets.
