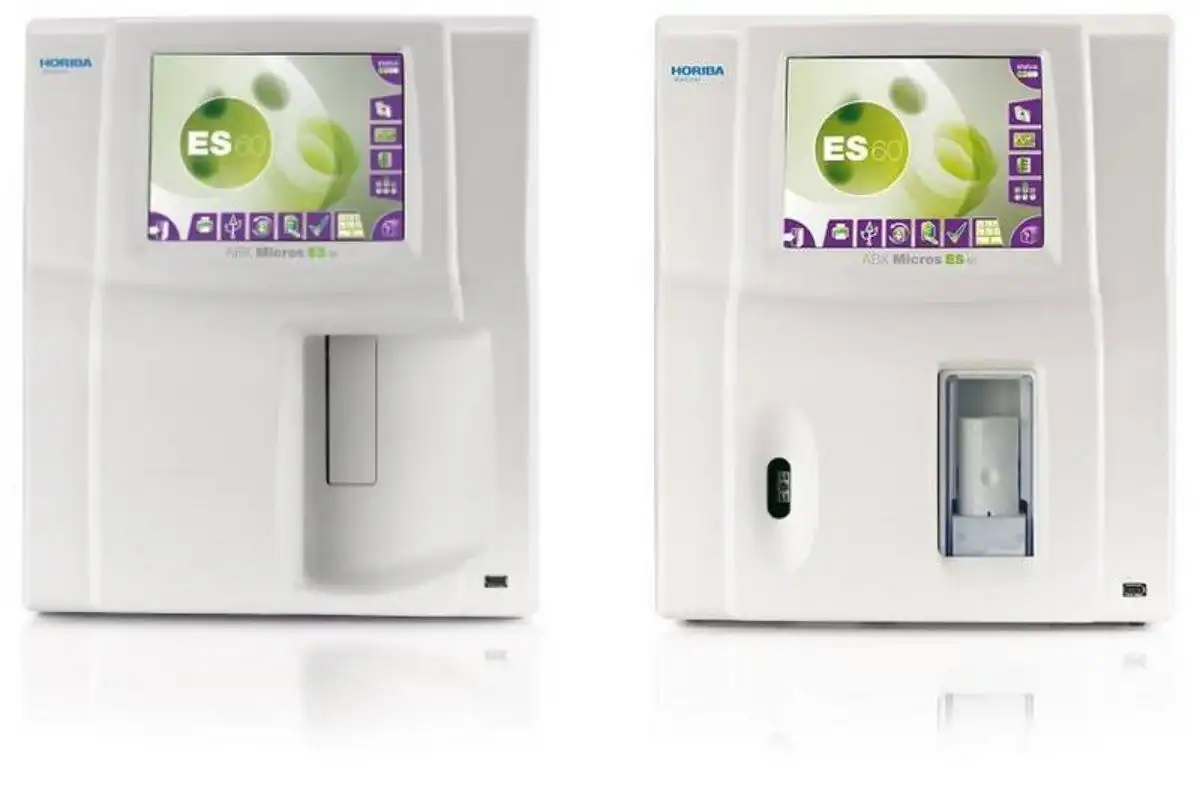

ABX Micros ES 60
Hematology Analyzer
The Gold Standard : Perfect combination of intuitive use and innovative technologies
- Highly compact and lightweight
- Micro-sampling on whole blood: 10μL
- Precise cellular identification through electronic impedance variation method
- Haemoglobin measurement with photometry
*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.
Segment: Healthcare
Division: Hematology
Manufacturing Company: HORIBA ABX SAS
Base product: Micros Range
- Integrated barcode reader (samples, QC and reagents) and thermal printer (full data printout and graphs)
- User-friendly interface (color touch screen, virtual keyboard)
- Complete Quality Control Program (3 QC levels import in one time, Levey-Jennings, XB, overlapping)
- Embedded Data Management: Data transfer with USB key to archive or download data, high results capacity, customized reports.
- Compatible with innovative reagent pack or bottle systems
SPECIFICATIONS
Technical
| Weight: | (OT) 30.9 lbs / 16 k, (CT) 35.7 lbs / 17 kg |
| Power supply: | 100 V to 240 V – 50 Hz to 60 Hz |
| Dimensions (HWD): | (in) 16.9 x 14.2 x 14.2 / (cm) 43 x 36 x 36 |
| Printer: | Built-in thermal printer |
| Throughput | 50 tests/hour (CT) – 60 tests/hour (OT) |
| Data Management: |
Complete QC menu, logs (reagents, calibration, maintenance, errors, blank cycle), easy data transfer (USB), Transmission of patient & QC results to LAN (local area network), Mono-directional connection, All-in-one QC import, overlapping
|
| Memory: | 1000 patients results with histograms |
| Screen: | LCD colour touch screen (8.4”) |
Samples
| Parameters (19) | WBC, RBC, RDW CV, HGB, MPV, HCT, MCV, PLT, MCH, MCHC, LYM# & LYM%, MON# & MON%, GRA# & GRA%, PDW*, PCT*, RDW SD*. |
| Graphics: | PLT, RBC, WBC curves |
| Blood volume: | CBC + 3DIFF mode: 10 μL |
| Stability: | 48 hours post-draw stability(at refrigerated temperature) |
| Operating sample mode: | Open tube or Closed Tube |
| Identification: | Alphanumeric, Integrated barcode reader |
* RUO (Research Use Only)
Results
| Parameters | Presicion (cv %) | Linearity |
|---|---|---|
| WBC | < 2.5 (at 4 – 10.0 x 103/μL) | 0 – 100 x 10³/µL |
| RBC | < 2.0 (at 4-7 x 106/μL) | 0 -8 x 106/µL |
| HGB | < 1.5 (at 12-18 g/dL) | 0 – 26 x g/dL |
| HCT | < 2.0 (at 36-54 %) | 0 – 80% |
| PLT (whole blood) | < 5.0 (at 200-500 x103/μL) | 0 – 2200 x 10³/µL (whole blood)
0 – 4000 x 10³/µL (PLT concentrate) |
Blood Controls & Calibrators
Blood Controls
| Reference | Description | |
|---|---|---|
| 2042208 | ABX Minotrol 16 – 2L | 2 x 2.5 mL vial |
| 2042202 | ABX Minotrol 16 – 2N | 2 x 2.5 mL vial |
| 2042209 | ABX Minotrol 16 – 2H | 2 x 2.5 mL vial |
Calibrators
| Reference | Description | |
|---|---|---|
| 2032002 | ABX Minocal | 2 mL vial |
N: normal level, H: high level, L: low level
* Recommended by HORIBA
