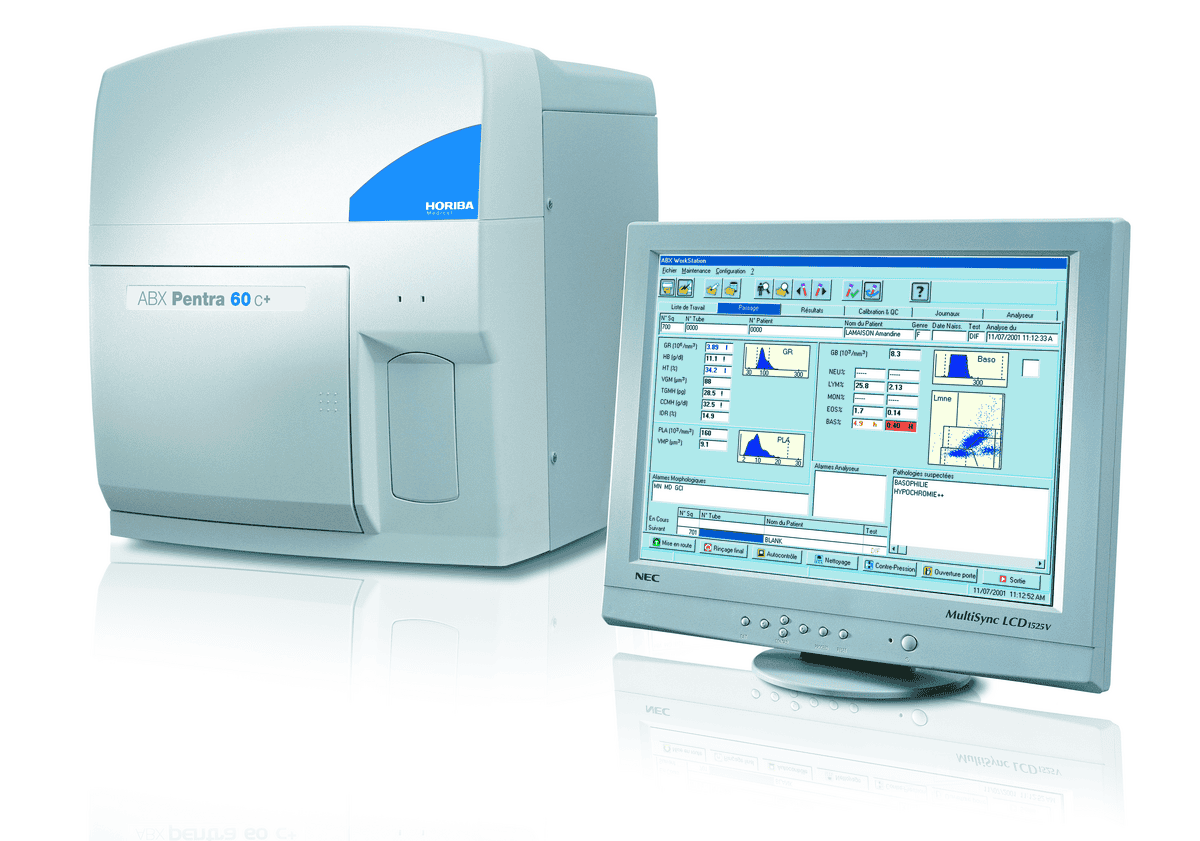

ABX Pentra 60 C+

Hematology Analyzer

A Dedicated Workstation for a Powerful Management of your Workflow

Closed tube
26 parameters
CBC / 5 Part DIFF
Data management on stand-alone PC.
Micro-sampling from whole blood (CBC : 30 µL – DIFF: 53 µL)
Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) – DHSS* Technology.
Perfect homogenization of blood samples with reagents – MDSS** Technology.

* DHSS : Double Hydrodynamic Sequential System
** MDSS : Multi-Distribution Sampling System

*This product may not be available in your country or region at this time. Please contact your HORIBA sales representative or distributor for more information.

Segment: Healthcare

Division: Hematology

Manufacturing Company: HORIBA ABX SAS

Base product: Pentra 60 Range

Categories: Hematology, Horiba, Lab Analyzers, Uncategorized

FEATURES
SPECIFICATIONS

Throughput: Up to 60 samples/hour
Reagents: Only 4 onboard reagents and 1 diluent
Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology
3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix.
Basophils counted through specific channel

High resolution matrix includes the determination of 2 additional subpopulations (% and #): Atypical Lymphocytes (ALY***) and Large Immature Cells (LIC***) * DHSS : Double Hydrodynamic Sequential System *** RUO parameters (Research Use Only)

SPECIFICATIONS

Technical

Weight	77 lbs / 35 kg
Power supply	100 to 240 V (± 10%) – 50 to 60 Hz.
Dimensions	20.3 x 17.5 x 19 in / 51,5 cm x 44,5 cm x 48 cm
Printer	Laser printer
Throughput	60 tests/hour.
Data management	Color screen: 15 in. monitor (800 x 600px) Windows XP Prof.^TM User-defined flagging limits Transmit patient & QC to LIS Uni-directional or bi-directional connection Communication Protocols: ABX / ASTM CD-ROM drive / Floppy disk 2 serial ports minimum USB Keyboard / USB Mouse
Memory	10,000 results + Graphics
Quality Control Management	12 selectable QC files XB: 60 Operator selectable batches with statistics (20 samples per batch) Within run Levey-Jennings Graphs
Logs	Reagents, calibration, maintenance, errors, blank cycle

scrollable

Samples

60 samples/hour (closed tube)
Parameters (26)	WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%, LIC# & LIC%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PCT, PDW.
Graphs	High-definition LMNE matrix PLT, RBC, WBC/BAS curves.
Blood Volume	CBC mode : 30 µL CBC + DIFF mode : 53 µL
Stability	48 hours post-draw stability
Operating sample mode	Closed tube
Identification	Alphanumeric. Bar-code reader (optional)

scrollable

* RUO parameters (Research Use Only)

Results

Parameters	Precision (%CV)	Linearity
WBC	< 2.0	0-120 x 10³/µL
RBC	< 2.0	0-8 x 10⁶/µL
HGB	< 1.0	0-24 g/dl
HCT	< 2.0	0-67%
PLT (whole blood)	< 5.0	0-1900 x 10³/µL
PLT (PLT concentrate)	< 5.0	0-2800 x 10³/µL

scrollable

Blood Controls & Calibrators

Blood Controls

Reference	Description
2062207	ABX Difftrol – 2L + floppy	2 x 3 mL vial
2062203	ABX Difftrol – 2N + floppy	2 x 3 mL vial
2062208	ABX Difftrol – 2H + floppy	2 x 3 mL vial
2042208	ABX Minotrol 16 – 2L	2 x 2.5 mL vial
2042209	ABX Minotrol 16 – 2H	2 x 2.5 mL vial
2042202	ABX Minotrol 16 – 2N	2 x 2.5 mL vial
