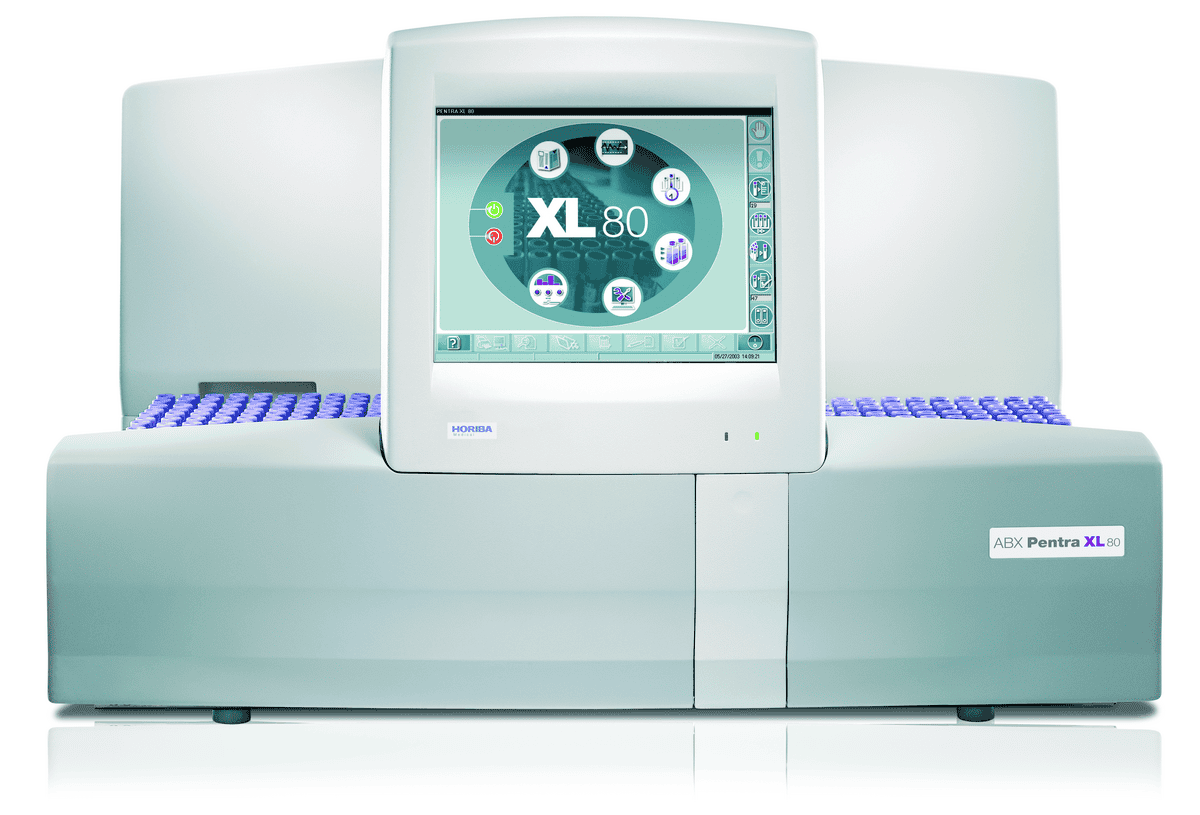

ABX Pentra XL 80

High performance hematology analysis with integrated validation

Malaria Screening in Routine Hematology Testing (Click here) Malaria testing is optionally available on ABX Pentra XL 80 and Pentra XLR upon request towards your HORIBA representative.

27 parameters
Whole blood micro-sampling (CBC: 35 µL, Plus Diff 53 µL)
Cytochemistry, Impedance (real cell volume measurement) & Optical (analysis of the internal cellular structure by measuring light absorbance) - DHSS* Technology
Perfect homogenization of blood samples with reagents - MDSS** Technology
Automatic Sample Re-run
Reagents: Only 4 reagents plus cleaner
Perfect differentiation of the 5 WBC sub-populations with DHSS* Technology
3 histograms for RBC, BAS/WBC and PLT together with the 5 DIFF Matrix
Basophils counted through specific channel
High resolution matrix includes the determination of 2 additional subpopulations (% and #): Atypical Lymphocytes (ALY***) and Large Immature Cells (LIC***)
Customized Dilution Ratio (CDR)
Integrated Workstation and Validation Station

* DHSS : Double Hydrodynamic Sequential System ** MDSS : Multi-Distribution Sampling System *** RUO parameters (Research Use Only)

SPECIFICATIONS

Weight	122 lb / 55 kg
Power supply	100 V to 240 V (± 10%) – 50 Hz to 60 Hz
Dimensions	32.3 x 22.4 x 21.5 in / 82 cm x 57 cm x 54 cm
Printer	Laser
Throughput	Up to 80 samples/hour
Data Processing	Colour LCD touch screen: 12 in PC onboard: Celeron 566 MHz Windows XP Prof.^TM RAM (256 Mo), Hard disk (10 Go mini) Floppy disk & CD ROM reader RS 232C, 2 X USB1 User defined flagging limits Transmit patient files & QC to LIS Uni-directional & bi-directional connections ASTM protocol inside
Memory capacity	10 000 results + Graphics
Quality Control Management	24 selectable QC files XB: 60 operator selectable files with statistics (20 results per file) With-in run Levey-Jennings graphs
Logs	Reagents, Quality Control, Calibration, Maintenance, Blank Cycle, Patients Data, Settings, Information, Technology Communication, Errors, by date.
Patient reports Management	Delta check Anteriority (Matrix, curves, data) Manual input

scrollable

80 samples/hour (open or closed tube)
Parameters (27)	WBC, NEU# & NEU%, LYM# & LYM%, MON# & MON%, EOS# & EOS%, BAS# & BAS%, ALY# & ALY%, LIC# & LIC%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW CV, RDW SD, PLT, MPV, PCT, PDW.
Graphs	High-definition LMNE matrix PLT, RBC, WBC/BAS curves
Blood Volume	CBC mode: 35 µL CBC + DIFF mode: 53 µL
Stability	48 hours post-draw stability
Operating sample mode	Autoloader 10 racks (100 tubes) capacity Sample mixing with end-over-end tube rotation Closed or open STAT tube
Identification	Alphanumeric. Bar-code reader (optional) and internal bar-code scanner

scrollable

* RUO parameters (Research Use Only)

Parameters	Precision (%CV)	Linearity Limits	Linearity Limits with CDR*
WBC	< 2.0	0-120 x 10³/µL	120-360 x 10³/µL
RBC	< 2.0	0-8 106/µL	0-8 X 10⁶/µL
HGB	< 1.0	0-24 g/dl	0-24 g/dL
HCT	< 2.0	0-67%	0-67%
PLT (whole blood)	< 5.0	0-1900 x 10³/µL	1900-3800 x 10³/µL
PLT (PLT concentrate)	< 5.0	0-2800 x 10³/µL	2800-5600 x 10³/µL

scrollable

*CDR: Customised Dilution Ratio

Reference	Description
2062207	ABX Difftrol Twin pack – 2L	2 x 3 mL vial
2062203	ABX Difftrol Twin pack – 2N	2 x 3 mL vial
2062208	ABX Difftrol Twin pack – 2H	2 x 3 mL vial
2042208	ABX Minotrol 16 Twin pack – 2L	2 x 2.5 mL vial
2042202	ABX Minotrol 16 Twin pack – 2N	2 x 2.5 mL vial
2042209	ABX Minotrol 16 Twin pack – 2H	2 x 2.5 mL vial
2042209	ABX Minotrol Retic Twin pack – 2N	2 x 3 mL vial
2042209	ABX Minotrol Retic Twin pack – 1L 1H	2 x 3 mL vial
